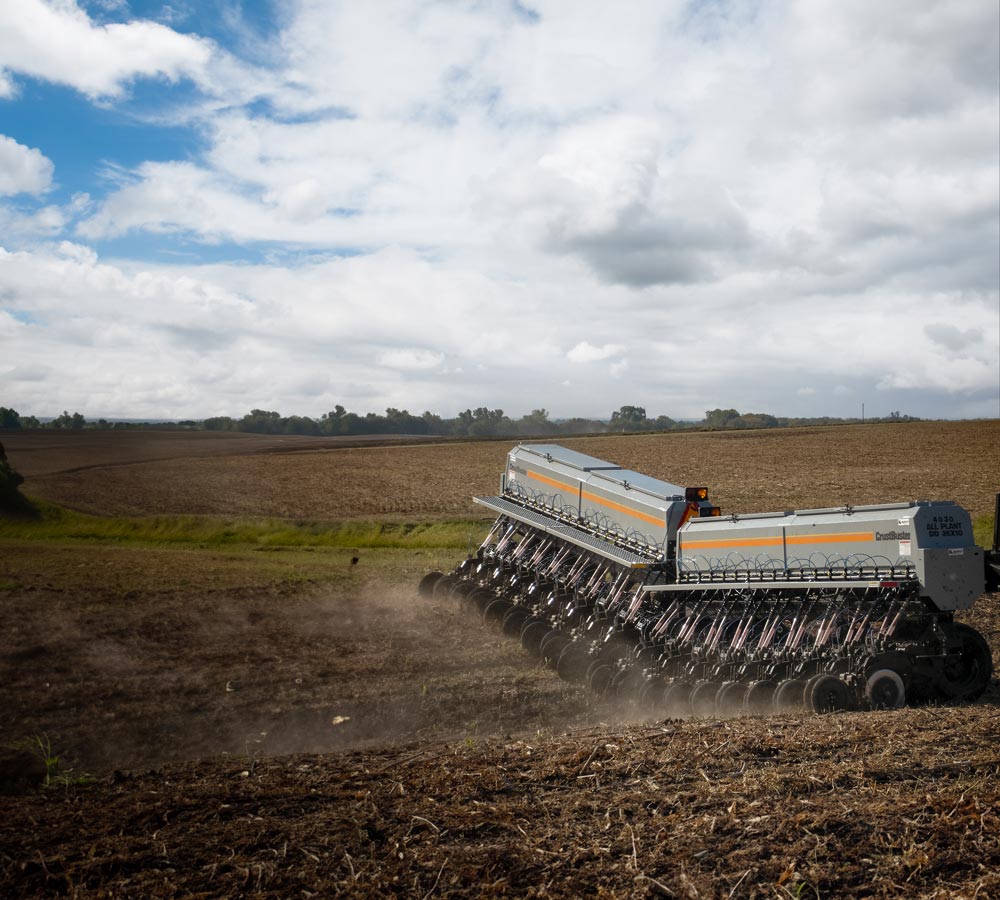

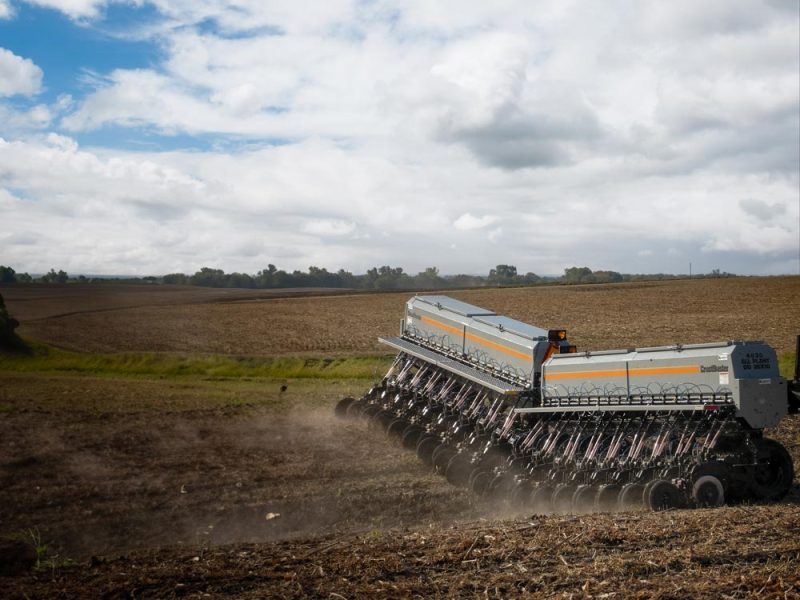

Crust Buster 4030 Drill

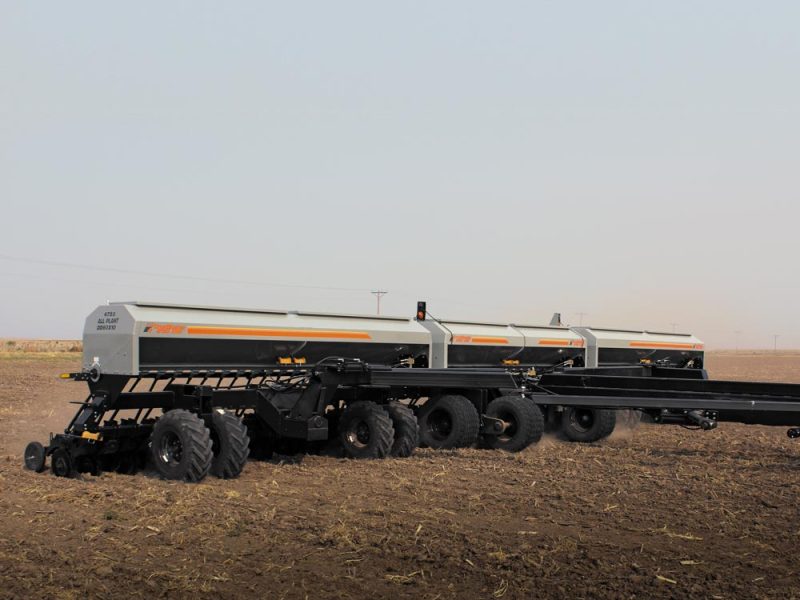

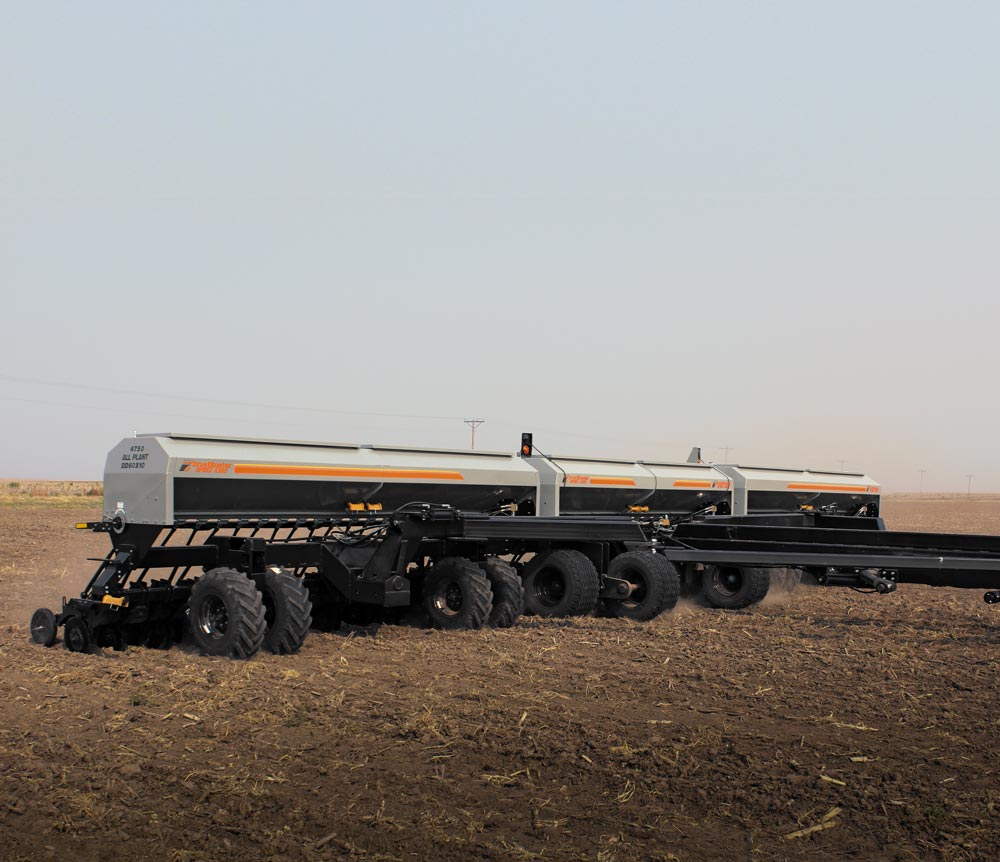

Crustbuster 4750 Drill

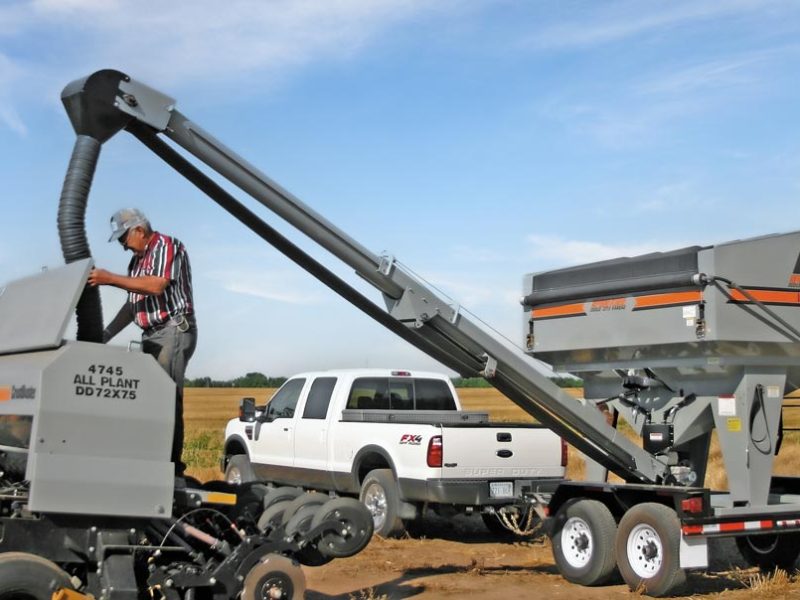

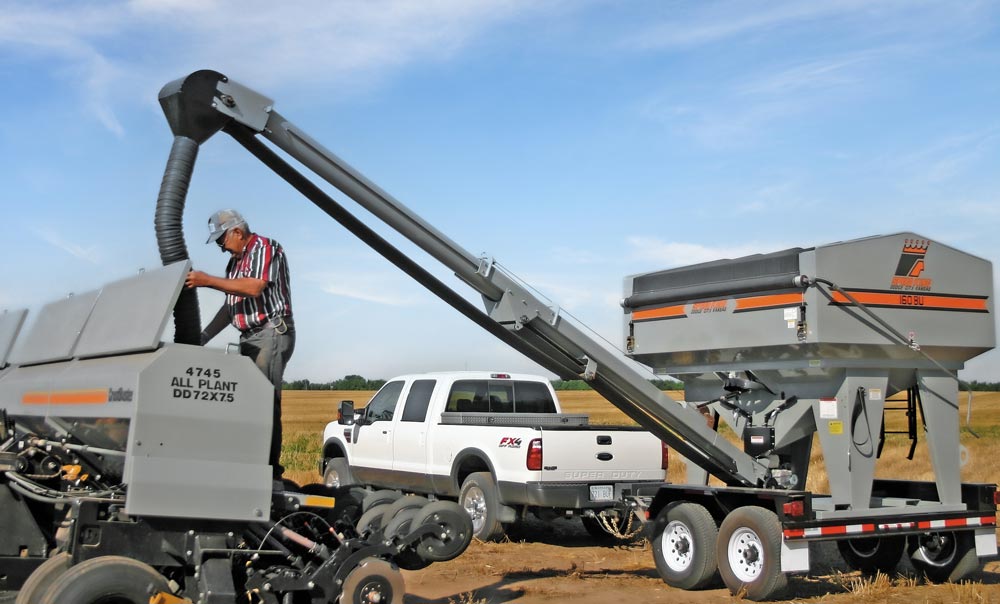

Crustbuster Seed Tender Filling Crustbuster Drill

Crustbuster

All Plant Drills

Drill Sizes

Non Folding Drill Sizes
10′ | 12′ | 15′

2 Section Front Folding Drill Sizes
20′ | 25′ | 30′

3 Section Front Folding Drill Sizes
40′ | 45′ | 50′

Standard Features

Row Widths: 7.5″ or 10″
Parallel Linkage
Double Disk Row Unit
125lb – 500lb Row
Unit Down Pressure
Notched Leading Edge Coulter
Wobble Slot Seed Meter
Sprocket Box Seed allows you to change rate without having to change sprockets or chains
Rotating tool bar raises the opener, not the drill
Shaft and Bin Monitors
Acre Meter
Flex Fold Frame

Optional Features

Small Seed Box
Fluffy Grass Seed Box
Dry Fertilizer Box
Liquid Fertilizer Kit
2pt Hitch
Hydraulic Markers
Dickey John Hydraulic Drive
Dickey John Population Sensors
Scale Kit
Seed Meter Plugs to Adjust Row Spacing

Crustbuster

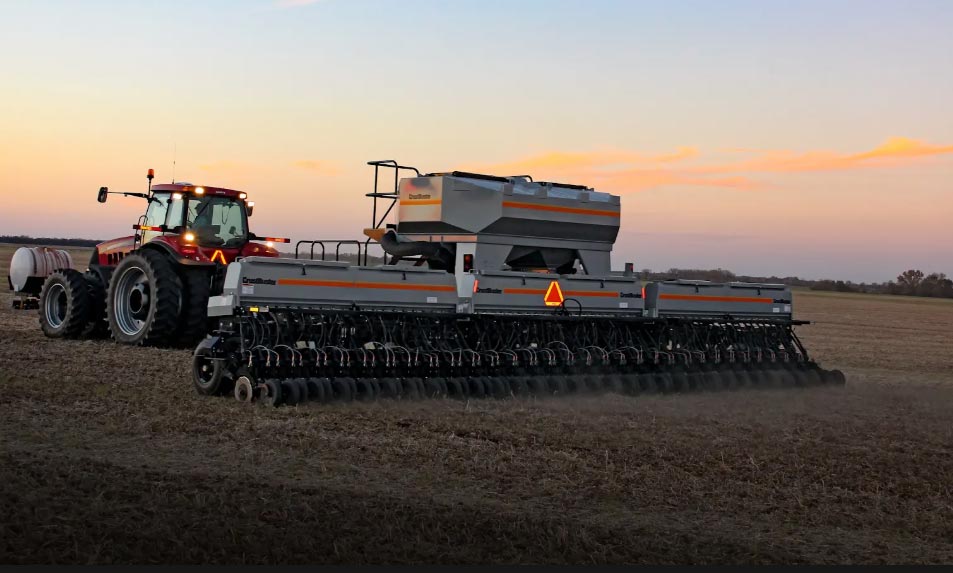

4700 Central Fill Air Seeder

Standard Features

Width 40′
7.5″ or 10″ Row Spacing
Dickey John Hydraulic Drive
200 Bushel Capacity
12′ Narrow Transport
Planting Speed up to 8mph
2pt or Hydraulic Front Hitch
Parallel Linkage Double Disk Row Unit
125lb – 500lb Row Unit Down Pressure
Notched Leading Edge Coulter
12 High Flotation Tires
Pressurized tank with low hopper sensors
ISO Compatible
Variable Rate Control
Section Control
Population Sensors on each rows
Applies Seed or Fertilizer
Flex Fold Frame
Approximate Weight 26,000 – 28,000
275hp Tractor Required

Optional Features

Weigh Scale
Fill Auger
Tow Behind Hitch

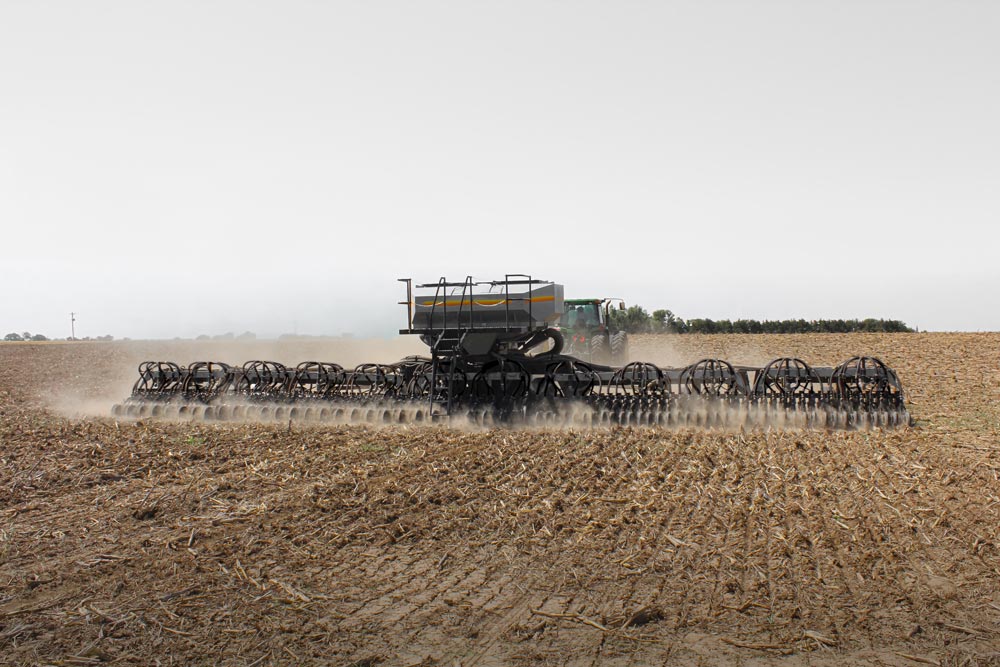

Crustbuster

4560 Central Fill Air Seeder

Standard Features

Width 60′
7.5″ or 10″ Row Spacing
Dickey John Hydraulic Drive
200 Bushel Capacity
12′ Narrow Transport
Planting Speed up to 8mph
2pt or Hydraulic Front Hitch
Parallel Linkage Double Disk Row Unit
125lb – 500lb Row Unit Down Pressure
Notched Leading Edge Coulter
12 High Flotation Tires
Pressurized tank with low hopper sensors
ISO Compatible
Variable Rate Control
Section Control
Population Sensors on each rows
Applies Seed or Fertilizer
Flex Fold Frame
Approximate Weight 40,000 – 43,000
300hp Tractor Required

Optional Features

Weigh Scale
Fill Auger
Tow Behind Hitch

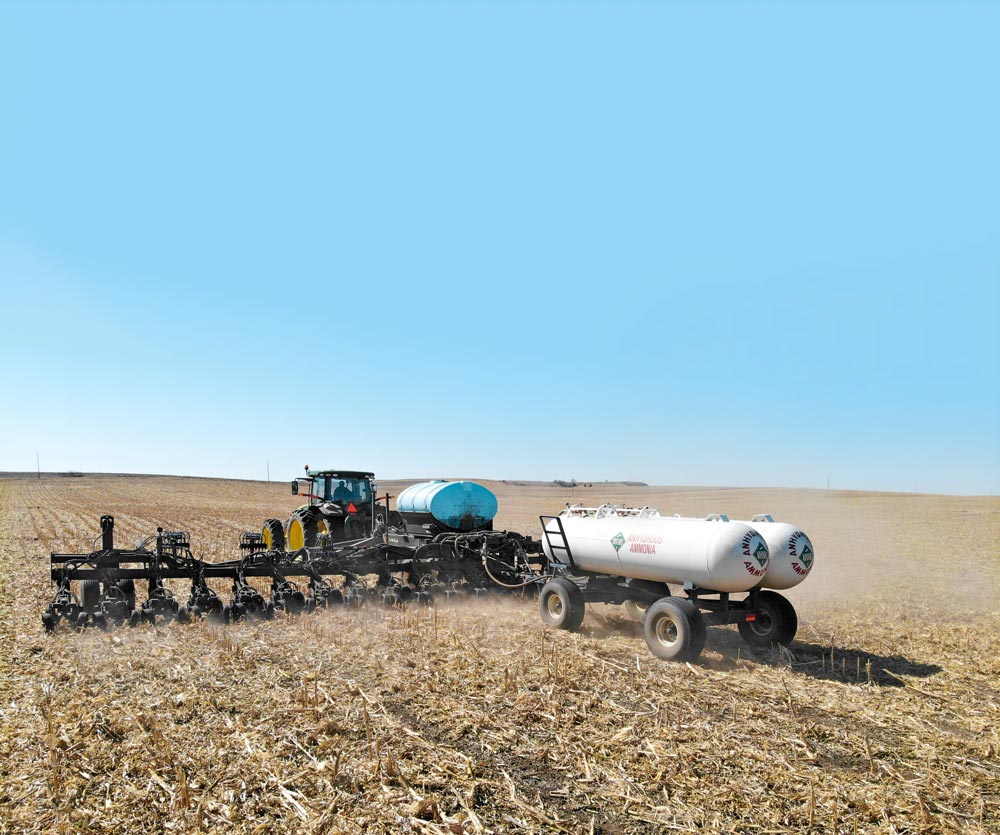

Crustbuster

Deep Banding High Speed Nutrient Applicator

Standard Features

Single Disk Coulter Row Unit
Width: 40′, 45′, 50′ & 60′
Row Unit Width: 15″, 20″ & 30″
10mph High Speed Application
Applies: NH3, Dry Fertilizer & Liquid Fertilizer
Deep Banding at 5.5″ deep
Minimal Soil Disturbance for No-Till Fields
Row Units are hydraulically raised
Row unit active down force up to 1,000lbs
Over 20″ of vertical travel per row unit
SureFire Torpedo NH3 Rate Controller: Applies up to 70 GPM
40,000 acres with minimal maintenance

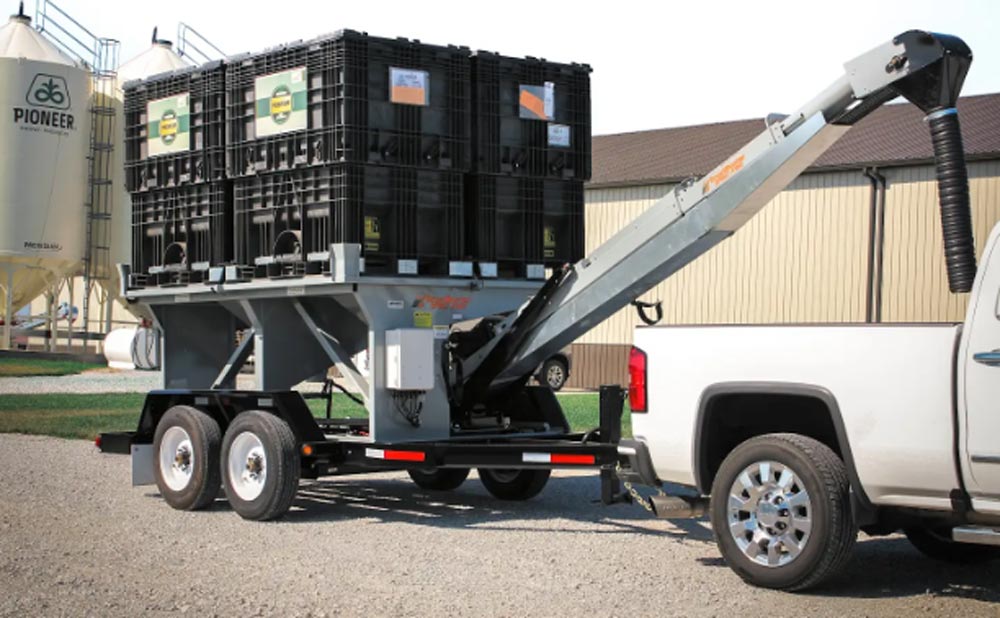

Speed King

Seed Tender

Seed Tender Sizes

2 Box Capacity
4 Box Capacity
160 Bushel Capacity
240 Bushel Capacity
330 Bushel Capacity

Standard Features

6″ Tube with an 8″ crescent top PVC belt
3-Piece 12′ telescoping downspout on all units
180° Pivot range
Can easily be mounted on your truck, trailer or optional chassis
Individual compartment control
Each compartment has level view windows
100% cleanout (no cross contamination)
ACI rollover cover system
1,830 Bushel/Hour Conveyor Capacity

Optional Features

12-volt liquid seed inoculator
12-volt electric or gas power drives available
Chassis with electric brakes
Tri-axle trailer chassis for 240 bushel capacity
1 hp 12-volt DC motor with controls
5½ hp Honda®️ with wireless control
Central Fill Kit
Digital scale
2 Compartment versatility
8″ Belt in a 6″ tube
Conveyor pivots a full 180″
Telescoping Conveyor 14′ to 22′
